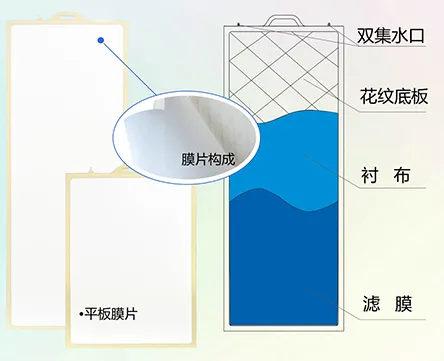

The MBR rigid flat sheet membrane element consists of four main components: filtration membrane, backing fabric, support plate, and water outlet.
High-Strength Solid ABS Plate: Tested for high fatigue resistance,
ensuring structural stability and long mechanical service life.
Plug-and-Play Design: Standardized product design enables easy installation and fast delivery.
High-Efficiency PVDF/PTFE Filtration Layer: Two material options to meet diverse operating conditions,
offering easy operation and maintenance, convenient cleaning, and resistance to sludge bulking impact.
| Membrane Model | Effective Membrane Area (m²) | Membrane Material | Support Plate Material | Pore Size (μm) | Recommended Permeate Flow (L/d) | Aeration Rate (L/min·sheet) | Element Dimensions (L×W×H, mm) | Effluent Turbidity (NTU) |
| UPMBR-FII/III-50 | 0.5 | PVDF/PTFE | ABS | 0.1 | 120–200 | 8 | 490×600×7 | ≤1.0 |
| UPMBR-FII/III-100 | 1 | PVDF/PTFE | ABS | 0.1 | 240–400 | 11 | 490×1250×8 | ≤1.0 |
| UPMBR-FII/III-150 | 1.5 | PVDF/PTFE | ABS | 0.1 | 360–600 | 12 | 490×1750×8 | ≤1.0 |
