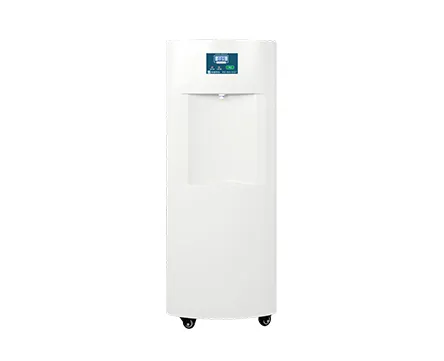

ULUPURE UPS Series ultrapure water systems feature a simple and elegant design, directly purifying tap water into ultrapure water that meets Class I water quality standards of GB/T 6682-92, ASTM, NCCLS, and ISO 3696:1995. It is a highly cost-effective ultrapure water preparation system designed for hospital laboratories.
For 80–100 L models, if the feed water pressure is below 3.0 kg/cm², a feed water booster system is required.
In areas with high residual chlorine in the feed water, a special ULUPURE filter or fully automatic activated carbon filter should be added.
In regions with high water hardness, a fully automatic water softener is necessary.
If the feed water contains high levels of sand or sediment, a quartz sand filter should be installed.
For pure water pressurized delivery over distances greater than 5 meters, an additional pressurized delivery system is required.
| Product Model | UPS-I-20/40/60/80/100L | UPS-II-20/40/60/80/100L | UPS-III-20/40/60/80/100L |
| Feed Water Source | City tap water (TDS < 400 ppm), residual chlorine ≤ 0.05 mg/L, pressure 2–5 kg/cm², temperature 5–45°C | ||
| Water Production Capacity | 20/40/60/80/100 L/h | 20/40/60/80/100 L/h | 20/40/60/80/100 L/h |
| Biochemistry Water Requirements | Conductivity ≤ 1 μS/cm (online monitoring) | ||
| Purified Water | Conductivity ≤ 0.1 μS/cm (online monitoring), microparticles <1/ml, absorbance <0.001, evaporation residue <1.0 mg/L, heavy metals <0.1 ppb | ||
| UP Ultrapure Water | / | Resistivity ≥ 18.0 MΩ·cm (online monitoring), bacteria removal rate >99%, microorganisms <1 CFU/ml | Resistivity ≥ 18.0 MΩ·cm (online monitoring), bacteria removal rate >99%, microorganisms <1 CFU/ml |
| Main Unit Dimensions | 20–40 L: 430×520×1050 mm; 60 L: 440×520×1300 mm; 80–100 L: 1350×500×740 mm | ||
| Power | 20–40 L: 100 W; 60 L: 150 W; 80–100 L: 200 W | ||
| Weight | 20–40 L: 80 kg; 60 L: 100 kg; 80–100 L: 135 kg | ||
| Water Tank Configuration | 20–40 L: standard 40 L pure water tank; 60 L: standard 40 L (optional 100 L tank); 80–100 L: 100 L pure water tank | ||
| Applications | Fully automatic biochemistry analyzers: Hitachi, Roche, Beckman (Olympus), Toshiba, Abbott, Mindray, Kehua, Dirui; Luminescence immunoassay, reagent preparation, laboratory testing, microbial culture, container cleaning;Clinical immunology, ELISA testing, biological experiments | ||
Fully microcomputer-controlled with automatic functions including system startup self-check, low water/power outage protection, overpressure protection, high water level auto-stop/low water level auto-start, and automatic system flushing.
The system uses custom pure water pumps, imported RO membranes, and imported fittings, combined with modular and integrated advanced design, ensuring stable and superior performance, as well as easier installation and maintenance.
Equipped with ULUPURE dedicated pretreatment unit, significantly extending consumable lifespan and reducing operating costs.
