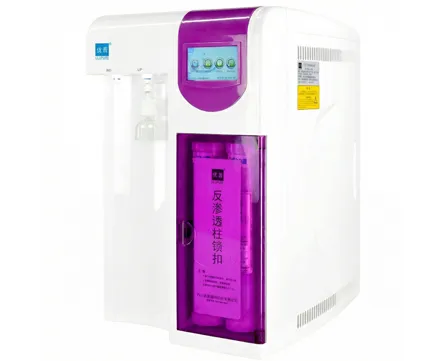

The UPZGE bench-top (ultra)pure water system features dual-stage RO reverse osmosis/EDI electrodeionization and other multi-stage deep purification processes, significantly improving ultrapure water quality while reducing system O&M costs. The produced pure/ultrapure water exceeds standards including GB/T6682-2008, GB/T 33087-2016, GB/T11446.1-2013, ISO3696-1995, ASTM D1193, ASTM D1125, CHP, USP, EP, CAP and CLSI.
ABS engineering plastic housing: acid/alkali corrosion resistant.
4.3-inch touchscreen display interface.
Dual-stage RO combined with modular EDI design effectively improves water quality and reduces O&M costs.
Four-channel water quality monitoring: RO product/RO dispense/EDI product/UP dispense.
Historical data recording (volume/water quality/time) downloadable via USB.
Intelligent multi-channel circulation system with over-standard discharge function for simultaneous bacteria removal and inhibition.
Fixed-quality/quantity dispensing and quick dispensing; optional dispensing handle for hands-free operation.
ULUPURE patented double-layer PE sterile tank with vent filter for safer water storage.
UV sterilizer integrated in pure water piping.
| Product Model | UPZGE-10/20T | Remarks |
| Feed Water Requirements | TDS < 200 ppm, Water Pressure 0.10–0.40 MPa, Water Temperature 5–45°C | Consumable life relates to feed water quality |
| Water Production Capacity | 10/20 (L/h) | |
| Water Dispensing Rate | 1.0–1.5 L/min | |
| RO Water Quality | Conductivity Range: 1–5 μS/cm (real-time monitoring) | |
| UP Water Quality | 18.2 MΩ·cm @25°C (real-time monitoring), Heavy metal ions ≤ 0.1 ppb, Micro particles ≤ 1/ml, Microorganisms ≤ 1 CFU/ml, RNases < 0.5 pg/ml, | |
RNases < 0.5 pg/ml, DNases < 5 pg/ml | Need to equip with ultrafiltration | |
| Mercury-free UV Sterilizer | Wavelength 270 nm | ULUPURE patented technology |
| MF Terminal Filter | 0.2μm | |
| Unit Dimensions | 375W x 505D x 615H (mm) | W: Width / D: Depth / H: Height |
| Unit Weight | Approx. 35 kg | |
| Power Supply | AC220V – 50 Hz (Power: 200–410 W) | |
| Storage Tank | ULUPURE Sterile Water Tank (double-layer medical-grade PE;standard with vent filter & dispensing faucet) | |
| Applications | AAS, AES, IC, HPLC, ICP/MS, VOC, IVF, PCR, LC/GC, amino acid analysis,protein purification, electrophoresis/gel analysis, toxicology analysis,animal/plant cell culture, molecular biology, genetic research, in vitro fertilization (IVF) |
Ordering Notes
1. The water production capacity of the product refers to the rated output of the RO membrane at a water temperature of 25°C. For every 1°C decrease in water temperature, the RO membrane’s production decreases by approximately 3%. When the water temperature falls below 5°C, the RO membrane will cease water production. Users should consider the seasonal drop in water temperature in their local region when selecting and ordering the system.
2. For areas with poor feed water quality (TDS ≥ 200 ppm), it is recommended to equip a fully automatic water softener, which can effectively reduce consumable consumption in subsequent system components.
3. With an optional 3000 Dalton ultrafiltration membrane (for applications such as animal cell experiments), endotoxin levels can be reduced to below 0.001 EU/ml.
4. With an optional 185/254 nm dual-wavelength ultraviolet digester, TOC can be reduced to below 10 ppb.
